Variable Speed Belt
Changes in speed can be accurately, smoothly and quietly transmitted from low to high speed.
Characteristics
- Greater lengthwise flexibility over small sheaves and transverse rigidity in tough drives
- Minimum belt stretch. High efficient power transmission allows for smooth follow of speed changes, creating excellent acceleration response
- Higher horsepower capacity contributes considerable energy saving
- Provides a smooth and noise-free drive
- Outstanding heat, oil and chemical resistance
- Static conductive
Applications
- Gear changers
- Motorcycles
- Agricultural machinery
Brand(s) Available
Download CatalogueTypes
Single - RCVS
Double - DCVS
Size Designation
1626V700 (RMA code) |
16 - Belt top width in 1/16 inch = 1 inch |
| 26 - Sheave groove angle ( ° ) | |
| V - Variable speed belt | |
| 700 - Belt pitch length in 1/10 inch = 70 inches |
RCVS-41-1275 (metrics) |
RCVS - Raw-edge cogged variable speed belt |
| 41 - Top width (mm) | |
| 1275 - Outside length (mm) |
Brand(s) Available
Types

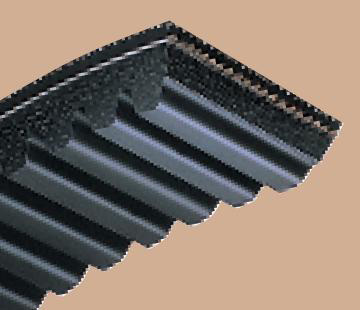

Rawedge Cogged Variable Speed Belt

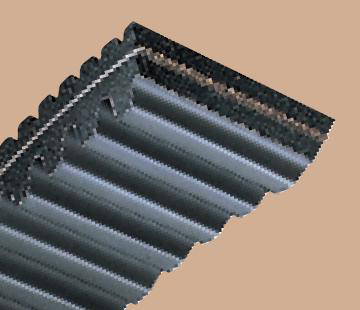

Double Cogged Variable Speed Belt
Size Designation
850 VA 2322 |
850 - Belt pitch length (mm) |
| VA - Belt type | |
| 23 - Belt top width in (mm) | |
| 22 - Pulley Groove Angle |

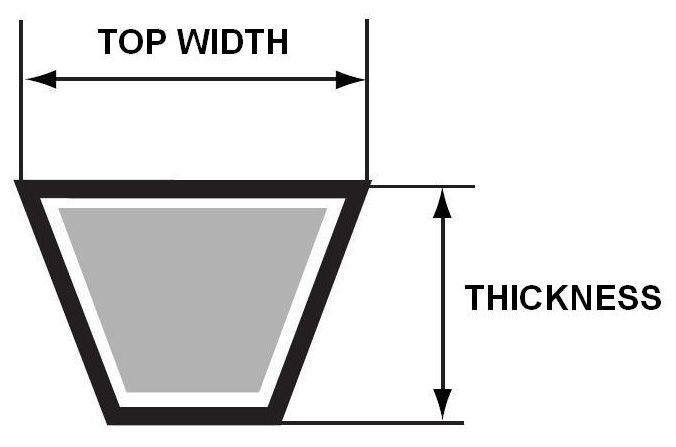

Dimensions
Belt Type |
VK |
VM |
VA |
VB |
VC |
VD |
VE |
VF |
VG |
 |
| Thickness (mm) | 5.5 | 7.0 | 8.5 | 10.0 | 11.5 | 13.5 | 16.0 | 18.0 | 20.0 | |
| Top Width (mm) | 13-20 | 13-25 | 16-35 | 20-41 | 25-76 | 30-70 | 32-70 | 40-70 | 40-76 |
Brand(s) Available
Types
Rawedge Cogged Variable Speed Belt
Double Cogged Variable Speed Belt
Size Designation
RCVS (RMA)
1422V270 (RMA code) |
14 - Belt top width in 1/16 inch = 0.875 inch |
| 22 - Sheave groove angle ( ° ) | |
| V - Variable speed belt | |
| 270 - Belt pitch length in 1/10 inch = 27 inches |
Dimensions
Code (RMA) |
Thickness (MM) |
Top Width (MM) |
|
| 7.5XX V | 5.0 | 12.0 | |
| 10XX V | 6.0 | 16.0 | |
| 12XX V | 19.0 | ||
| 14XX V | 8.0 | 22.8 | |
| 15XX V | 23.8 | ||
| 16XX V | 10.0 | 25.6 | |
| 18XX V | 28.6 | ||
| 19XX V | 30.5 | ||
| 20XX V | 12.0 | 31.8 | |
| 21XX V | 33.4 | ||
| 22XX V | 35.2 | ||
| 23XX V | 36.5 | ||
| 24XX V | 38.4 | ||
| 25XX V | 39.7 | ||
| 26XX V | 41.3 | ||
| 28XX V | 44.8 | ||
| 29XX V | 14.0 | 46.0 | |
| 30XX V | 47.7 | ||
| 32XX V | 50.8 | ||
| 34XX V | 54.4 | ||
| 36XX V | 57.6 | ||
| 37XX V | 16.0 | 59.2 | |
| 38XX V | 60.8 | ||
| 40XX V | 63.6 | ||
| 42XX V | 18.0 | 67.2 | |
| 44XX V | 69.9 | ||
| 46XX V | 20.0 | 73.6 | |
| 48XX V | 76.0 | ||
| 51XX V | 22.0 | 81.6 | |
| 52XX V | 83.2 | ||
| 54XX V | 86.4 | ||
| 56XX V | 24.0 | 89.6 | |
| 58XX V | 92.8 | ||
| 60XX V | 96.0 | ||
| 61XX V | 97.6 | ||
| 62XX V | 99.2 |
Brand(s) Available
Types
Rawedge Cogged Variable Speed Belt
Double Cogged Variable Speed Belt
Size Designation
RCVS (Metrics)
41-1413 (metrics) |
41 - Top width (mm) |
| 1413 - Outside length (mm) |
Pulley Groove Angle, default at 28 degree
Dimensions
Thickness (MM) |
Top Width (MM) |
|
| 6.0 | > 21.0 | |
| 8.0 | 21.5 - 25.0 | |
| 10.0 | 25.5 - 31.5 | |
| 12.0 | 32.0 - 45.0 | |
| 14.0 | 46.0 - 53.0 | |
| 16.0 | 54.0 - 66.0 | |
| 18.0 | 67.0 - 70.0 | |
| 20.0 | 71.0 - 80.0 | |
| 22.0 | 81.0 - 88.0 | |
| 24.0 | < 89.0 |
