Coupling & Coupling Spare
A coupling is a device used to connect two shafts together at their ends for the purpose of transmitting power. Couplings do not normally allow disconnection of shafts during operation, however there are torque limiting couplings which can slip or disconnect when some torque limit is exceeded. The primary purpose of couplings is to join two pieces of rotating equipment while permitting some degree of misalignment or end movement or both. By careful selection, installation and maintenance of couplings, substantial savings can be made in reduced maintenance costs and downtime.

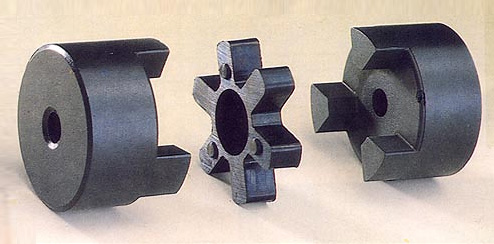

MT - Hyper Flex Coupling & Coupling Spare
MT type is a compression stress type, which is compact design with large transmission torque.
Characteristics
- Compact size with large transmission torque
- Easy-to-install and maintenance-free
- The polyurethane elastic body, which features excellent oil and abrasion resistance
Applications
- Applicable for all kinds of applications
Coupling Spares
- Available in Rubber or Polyurethane
Brand(s) Available
Download Catalogue
Size Designation
MT 50 RS |
MT - Coupling Type |
| 50 - Size | |
| RS - Rubber Spares |
MT 50 US |
MT - Coupling Type |
| 50 - Size | |
| US - Polyurethane Spares |
Dimensions Refer to Catalogue Download

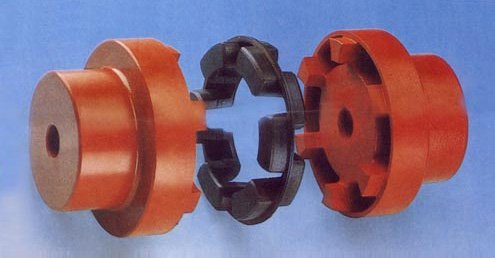

MH - Hyper Flex Coupling & Coupling Spare
MH type is a model uses shearing stress of elastic rubber.
Characteristics
- High flexibility and excellent shock absorption
- Minimum space required with high speed
- Quiet and smooth operation
- Easy installation and maintenance free
Applications
- Applicable as a torque limiter
- Available to machine with low torque and continuous operation
Coupling Spares
- Available in Rubber
Brand(s) Available
Size Designation
MH 45 RS |
MH - Coupling Type |
| 45 - Size | |
| RS - Rubber Spares |
Dimensions Refer to Catalogue Download

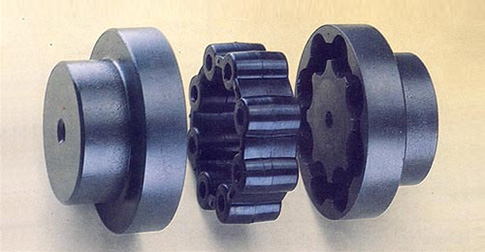

NM - Flexible Coupling & Coupling Spare
Highly flexible coupling that is low in noise and high in sustaining shock load.
Characteristics
- Quiet and smooth operation
- Easy installation and maintenance free
- Available to machine with high torque and intermittent operation
- The characteristics for the synthetic rubber: proper elasticity and resistance to damping, oil, acid and alkali
Applications
- Extensively used in compressors, diesel engine drives, pumps, conveyors, and many other drive units
Coupling Spares
- Available in Rubber
Brand(s) Available
Size Designation
NM 67 RS |
NM - Coupling Type |
| 67 - Size | |
| RS - Rubber Spares |
Dimensions Refer to Catalogue Download

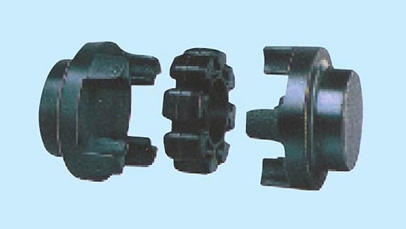

L & CL - Flexible Coupling & Coupling Spare
This flexible coupling offers standard shaft-to-shaft connection for general industrial applications. Sometimes known as "CL" for cast iron and "AL" for aluminium hub material.
Characteristics
- Simple construction & light weight
- NBR rubber with excellent resistance to oil and drugs
- Minimum space
- No lubrication
- Easy pulling out
Applications
- Applicable for standard shaft-to-shaft connection for general industrial applications
Coupling Spares
- Available in Rubber
Brand(s) Available
Size Designation
CL 75 RS |
CL - Coupling Type |
| 75 - Size | |
| RS - Rubber Spares |
Dimensions Refer to Catalogue Download
FCL - Flexible Flanged Shaft Coupling & Coupling Spare
FCL flexible coupling is widely used for its compact design, easy installation, convenient maintenance, small size and light weight. Also widely known as “CL” type, this coupling uses bolts/nuts and rubber bush instead of elastomer (spider).
Characteristics
- Compact Design
- Easy installation and maintenance free
- Convenient Maintenance
- Small Size
- Light Weight
Applications
- Applicable for medium and minor power transmission systems driven by motors, such as speed reducers, compressors. conveyers. spinning and weaving machines and ball mills
Coupling Spares
- Available in Rubber
Brand(s) Available
Size Designation
FCL 80/162K-BS |
FCL - Coupling Type |
| 80 - Size | |
| 162K - Bolt Size | |
| BS - Bolt Set |
Dimensions Refer to Catalogue Download

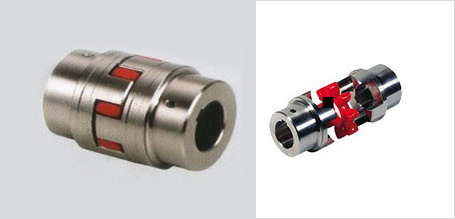

Curved Jaw Flexible Shaft Coupling & Coupling Spare
The construction allows safe power transmission between driver and driven shafts, absorbing impact loads and torsional vibrations.
Characteristics
- Vibration-free power transmission for printing machines
- Elevator drives etc
- High power density
- Axial plug-in - easy assembly
- Different elastomer hardnesses of the spiders
- Maintenance free, easy visual check
Applications
- General engineering and hydraulics. Ideal for transmitting torque while damping torsional vibrations and absorbing shocks produced by the uneven operation of certain prime movers
Coupling Spares
- Available in Polyurethane
Brand(s) Available
Size Designation
GE 19/24 1a/1a GG25 US |
GE - Coupling Type |
| 19/24 - Size | |
| 1a/1a - Hub Design Type | |
| GG25 - Material | |
| US - Polyurethane Spares |
Dimensions Refer to Catalogue Download

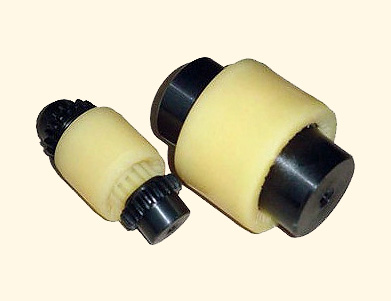

Curved Tooth Coupling & Coupling Spare
Double cardanic curved tooth coupling.
Characteristics
- Axial plug-in - easy assembly
- Compensation of axial-radial and angular shaft displacements
- Maintenance-free on account of the combination of plastic materials
- Operational range - 25°C to 100°C, for higher temperatures special sleeves up to 120°C
Applications
- Applicable to all ranges of machinery and hydraulics
Coupling Spares
- Available in Polyurethane
Brand(s) Available
Size Designation
M 14 / RGF 14 GG25 US |
M / RGF - Coupling Type |
| 14 - Size | |
| GG25 - Material | |
| US - Polyurethane Spares |
Dimensions Refer to Catalogue Download
Chain Coupling
Chain coupling is composed of a duplex roller chain and two sprockets. The function of connection and detachment is done by the joint of chain.
Characteristics
- Simplicity - simple to install
- High efficiency - compact and powerful
- Flexible for easy alignment
- Built to last
Applications
- Developed for applications where horsepower and torque or high or extreme accuracy is desired for torque settings
Brand(s) Available
Size Designation
4012 |
4012 - Size |
Dimensions Refer to Catalogue Download

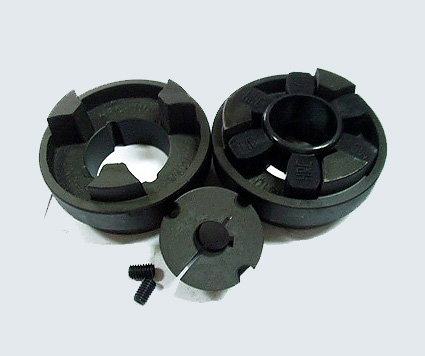

HRC - Coupling & Coupling Spare
HRC Couplings is also known as Taper Bushed Rubber Couplings. They are designed for use particularly on machinery driven from standard IEC electric motors.
Characteristics
- Easy installation and maintenance free
- Convenient maintenance
- The electrometric element allows HRC to be suitable for use in most conditions
Applications
- Brewing machinery, blowers, compressors, conveyors, sewage disposal equipment, mill machinery, crushers and shakers
Coupling Spares
- Available in Rubber
Brand(s) Available
Size Designation
HRC 90 B RS |
HRC - Coupling Type |
| 90 - Size | |
| B - Type | |
| RS - Rubber Spares |
HRC 90 1108 FH RS |
HRC - Coupling Type |
| 90 - Size | |
| 1108 - Bush Size | |
| FH - Type Taper Bush | |
| RS - Rubber Spares |
Dimensions Refer to Catalogue Download
Tyre Coupling & Coupling Spare
Tyre couplings provide all the desirable features of an ideal flexible coupling, including Taper Lock fixing. Tyre coupling is a "torsionally elastic" coupling offering versatility to designers and engineers with a choice of flange combinations to suit most applications.
The flanges are available in either F or H version Taper Lock fitting or bored to size B.
Characteristics
- Torque-bore range
- Misalignment - Handles parallel, angular and axial displacements, either singly or in any combination
- Torsionally Soft - Cushions against destructive shock loads protecting the complete system, preventing expensive breakdowns and lengthens machine life
- Free of Backlash - Does not create 'snatch' on take up of the drive
- Easy installation and maintenance free
- Damping - Reduces vibration and torsional oscillations developed in internal combustion engines, the amplitude of which increases greatly at critical points in the speed range. Polydrive Tyre coupling dampens these destructive vibrations
Applications
- Brewing machinery, compressors, pumps, belt conveyors, general machinery, rotary pumps, blowers, crushers, cooling tower fans
Coupling Spares
- Available in Rubber
Brand(s) Available
Size Designation
F 60 B RS |
F - Coupling Type |
| 60 - Size | |
| B - Type | |
| RS - Rubber Spares |
F 60 1610 FH RS |
F - Coupling Type |
| 60 - Size | |
| 1610 - Bush Size | |
| FH - Type Taper Bush | |
| RS - Rubber Spares |
