Industrial Rubber / Polyurethane Timing Belt

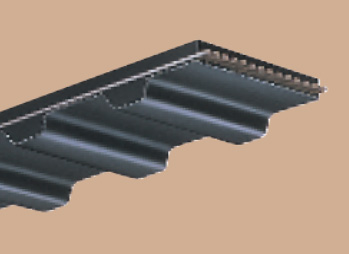

Super Torque Timing Belt (Rubber - Single)
Timing belt with round shape tooth which provides high power transmission. Expands timing belt application fields.
Characteristics
- Wider application ranges with higher power transmission capacity
- Longer service life
- Lower noise level
- Cost saving
- Higher torque transmission by small size belt
- Assures higher positioning accuracy
Applications
- Tooling Machines
- Textile Machines
- OA equipments
- Vending Machines
Brand(s) Available
Download Catalogue
Types
S1.5M, S2M, S3M, S4.5M S5M, S8M, S14M
Size Designation
B40S2M160 |
B - Belt |
| 40 - Width (mm) x 10 | |
| S - Super Torque | |
| 2M - Cross Section | |
| 160 - Belt Length (mm) |

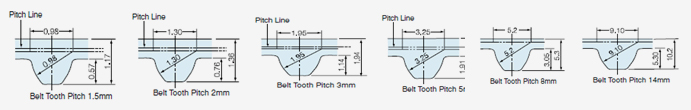

Dimensions
Cross Section |
S1.5M |
S2M |
S3M |
S4.5M |
S5M |
S8M |
S14M |
| Teeth Pitch | 1.5mm | 2.0mm | 3.0mm | 4.5mm | 5.0mm | 8.0mm | 14mm |
 |
Super Torque Timing Belt (Rubber - Double)
Provided with symmetrical teeth on both sides, this belt is suitable for positive, multi-pulley drives
Characteristics
- Lighter than chains and gears
- Maintenance free
Applications
- High speed drives with space saving
- Recommended for slipless, positive multi-pulley drives
Size Designation
B40DS3M384 |
B - Belt |
| 40 - Width (mm) x 10 | |
| DS - Double Super Torque | |
| 3M - Cross Section | |
| 384 - Belt Length (mm) |
Dimensions
Cross Section |
DS3M |
DS5M |
DS8M |
DS14M |
| Teeth Pitch | 3.0mm | 5.0mm | 8.0mm | 14.0mm |
Super Torque Timing Belt (Polyurethane)
Polyurethane belt suitable for use in clean environment
Characteristics
- Superior in accuracy for light duty application
- Superior resistance to oils, fats and greases
- Clean drive
- Anti-ozone
- Consistent dimensional Stability
- Low pre-tension
- Lower noise level
- Low Maintenance
- High Flexibility
Applications
- Office & home appliance
- Printers
- General use
Size Designation
B40S2M160 |
B - Belt |
| 40 - Width (mm) x 10 | |
| S - Super Torque | |
| 2M - Cross Section | |
| 160 - Belt Length (mm) |

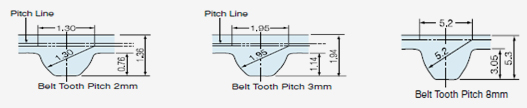

Dimensions
Cross Section |
S2M |
S3M |
S8M |
| Teeth Pitch | 2.0mm | 3.0mm | 8.0mm |
 |
Mega Torque Timing Belt (Rubber/Polyurethane)
Mega Torque is a low speed, high torque use timing belt.
Characteristics
- Large transmission capacity is achievable, at about 2 times that of Super Torque (Rubber)
- Compact design possible
- Pulley of existing models can be used as per usual
Applications
- Office & home appliances
- General use
Brand(s) Available
Types
Rubber (G) - MTS5M, MTS8M, MTS14M
Polyurethane (U) - MTS8M
Size Designation
250MTS5M1125G |
250 - Belt Width (mm) x 10 |
| MT - Mega Torque | |
| S5M - Belt Type | |
| 1125 - Belt Length (mm) | |
| G - Rubber |
250MTS8M1125U |
250 - Belt Width (mm) x 10 |
| MT - Mega Torque | |
| S8M - Belt Type | |
| 1125 - Belt Length (mm) | |
| U - Polyurethane |

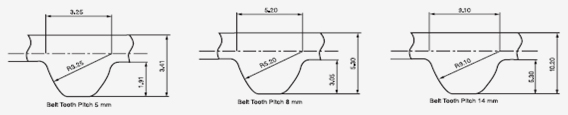

Dimensions
Cross Section |
MTS5M |
MTS8M |
MTS14M |
| Pitch | 5mm | 8mm | 14mm |
| Min Pulley Diameter (mm) | 22 | 56(G)/61(U) | 151 |
| Highest Speed (m/sec) | 30 | 30 (G/U) | 30 |
 |

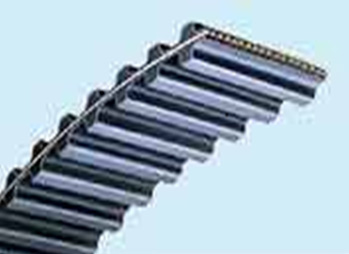

High Torque Timing Belt (Rubber) - Single / Double
High Torque Drive Timing Belt.
Characteristics
- Neoprene backing - The extra durable, highly flexible neoprene backing provides excellent abrasion & wear resistance.
- Tensile Cords - Heavy torque loads would not fatigue this super strong cord.
- Teeth - Precision formed, oil and heat resistant neoprene teeth have a shear resistance equal to the tensile strength of the belt.
- Facing - Tooth surface is protected by a low fiction, clean running, wear resistant woven nylon facing.
Applications
- OA Equipment
- Automated vending Machine
- Electronic Applications
- Tooling Machine
Brand(s) Available
Types
Single - 2M, 3M, 5M, 8M, 14M
Double - D5M, D8M, D14M
Size Designation
15HTD5M330 |
15 - Belt Width (mm) |
| HTD - High Torque | |
| 5M - Belt Type | |
| 330 - Belt Length (mm) |
15HTD D5M330 |
15 - Belt Width (mm) |
| HTD - High Torque | |
| D5M - Belt Type | |
| 330 - Belt Length (mm) |
Dimensions
Cross Section |
2M |
3M |
5M |
8M |
14M |
| Pitch | 2mm | 3mm | 5mm | 8mm | 14mm |
Cross Section |
D3M |
D5M |
D8M |
D14M |
| Pitch | 3mm | 5mm | 8mm | 14mm |
 |
High Torque Timing Belt (Polyurethane)
They are ideal for applications needing high oil and ozone resistance. Their clean operation makes them suitable for appliance and office machine use.
Characteristics
- Body - Highest quality polyurethane for maximum oil and ozone resistance. Non-static conductive
- Tensile Cords - Provide high load carrying capacity and superior tooth shear strength under shock load application
Applications
- OA Equipment
- Automated vending Machine
- Electronic Applications
- Tooling Machine
Size Designation
15HTD5M330 |
15 - Belt Width (mm) |
| HTD - High Torque | |
| 5M - Belt Type | |
| 330 - Belt Length (mm) |
Dimensions
Cross Section |
3M |
5M |
| Pitch | 3mm | 5mm |

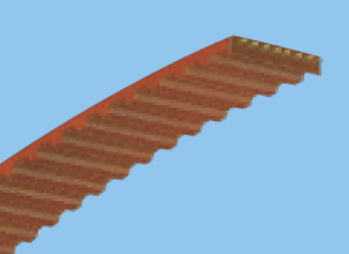

Trapezoidal Timing Belt (Rubber - Single / Double)
Suitable for synchronous drives. Removes disadvantages of chain and gear drives.
Characteristics
- High power transmission capacity with higher transmission efficiency
- Lower noise generation as compared with chain or gear drives
- No maintenance required
- Lightweight, thin and flexible characteristics allow space saving drive design
- The ambient temperature range for operation of the standard belt is -30 to +90degree. Static conductive
Applications
- Home sewing Machine
- ATM
- Typewriter
- Coin Machine
- Ticketing Machine
- Copier
- Packing Machine
Brand(s) Available
Types
Single - MXL, XL, L, H, XH, XXH
Double - DMXL, DXL, DL, DH
Size Designation
120XL037 |
120 - Belt Length (inch) x 10 |
| XL - Belt Type | |
| 037 - Belt Width (inch) x 10 |
120DXL037 |
120 - Belt Length (inch) x 10 |
| DXL - Belt Type | |
| 037 - Belt Width (inch) x 10 |

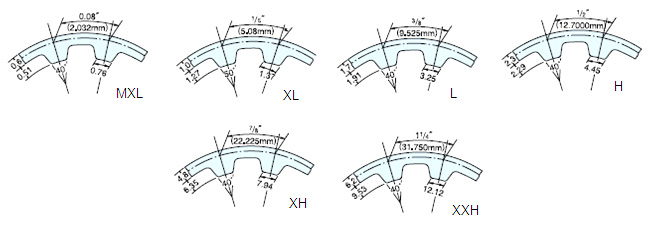

Dimensions
Cross Section |
MXL |
XL |
L |
H |
XH |
XXH |
| Pitch (mm) | 2.032mm | 5.08mm | 9.525mm | 12.70mm | 22.225mm | 31.750mm |
| Pitch (inch) | 0.08inch | 0.2inch | 0.375inch | 0.5inch | 0.875inch | 1.25inch |
Cross Section |
DMXL |
DXL |
DL |
DH |
| Pitch (mm) | 2.032mm | 5.08mm | 9.525mm | 12.70mm |
| Pitch (inch) | 0.08inch | 0.2inch | 0.375inch | 0.5inch |
 |

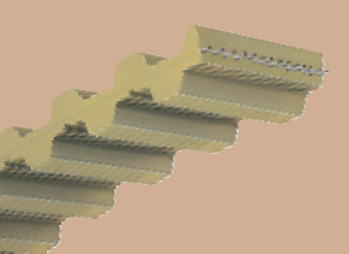

Trapezoidal Timing Belt (Polyurethane - Single / Double)
Polyurethane belt suitable for use in clean environments.
Characteristics
- Best suited to high precision, light duty power transmissions
- Suitable for paper feeding, since this belt has a fine appearance and does not stain peripheral devices
- Since no rubber powder comes off, clean transmissions can be obtained
- Special belt configurations are available on request
- Long belts are available
- Felt or urethane attachments can be made on back face of belt
- Lubrication-free, clean drives
Applications
- Printer
- Projector
- Sewing Machine
- Packaging Machine
- Card Reader
- Textile Machine
- Paper Manufacturing
Brand(s) Available
Types
Single - T80, T2.5, T5, T10, T20, AT5, AT10, AT20
Double - DT5, DT10
Size Designation
30T80-10MM |
30 - No. of Teeth |
| T80 - Belt Type | |
| 10 - Belt Width |
10DT10/1400 |
10 - Belt Width |
| DT10 - Belt Type | |
| 1400 - Belt Length |

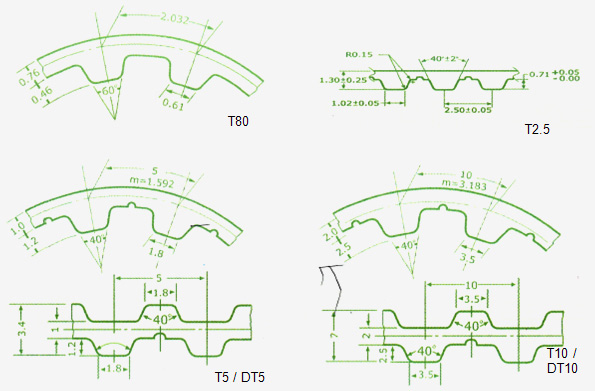

Dimensions
Cross Section |
T80 |
T2.5 |
T5 |
T10 |
T20 |
AT5 |
AT10 |
AT20 |
| Pitch (mm) | 2.032mm | 2.5mm | 5mm | 10mm | 20mm | 5mm | 10mm | 20mm |
Cross Section |
DT5 |
DT10 |
| Pitch (mm) | 5mm | 10mm |
 |

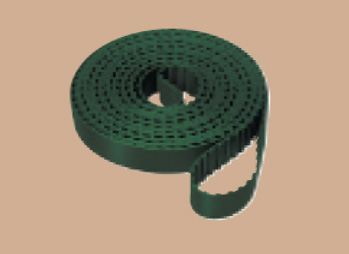

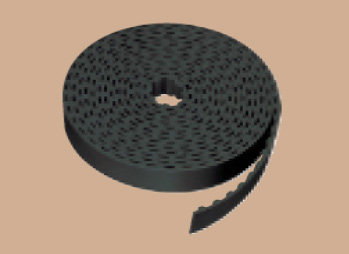

Long Span Open-End Timing Belt (Rubber / Polyurethane)
This belt is long-span linear drives and light-duty synchronous transmission and transportation.
Characteristics
- Consistent dimensional stability
- Low pre-tension
- Low noise
- High precision linear positioning
- Good resistance to ageing, hydrolysis, UVA rays and most acids and alkalis
- Compatible for fabrication with other thermoplastic materials
Applications
- Conveyors
- Automatic sliding doors
- Elevators
- Automated handling Devices
- Textile Machine
- Paper & carton Industry
- Chemist & pharmaceutical Industry
- Packaging Industry
Brand(s) Available
Types
Rubber - S2M, S3M, S4.5M, S5M, S8M, S14M, MXL, XL, L, H, XH
Polyurethane - T5, T10, T20, AT5, AT10, AT20
Size Designation
XH0050/3000 |
XH - Belt Type |
| 0.50 - Belt Width | |
| 3000 - Belt Length (mm) |
T5-010MM/3000 |
T5 - Belt Type |
| 10 - Belt Width | |
| 3000 - Belt Length (mm) |
Dimensions
Cross Section |
S2M |
S3M |
S4.5M |
S5M |
S8M |
S14M |
MXL |
XL |
L |
H |
XH |
| Pitch (mm) | 2mm | 3mm | 4.5mm | 5mm | 8mm | 14mm | 2.032mm | 5.08mm | 9.525mm | 12.7mm | 22.225mm |
Cross Section |
T5 |
T10 |
T20 |
AT5 |
AT10 |
AT20 |
| Pitch (mm) | 5mm | 10mm | 20mm | 5mm | 10mm | 20mm |
