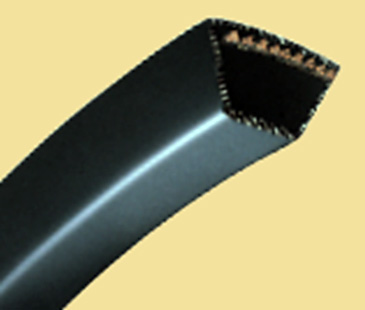

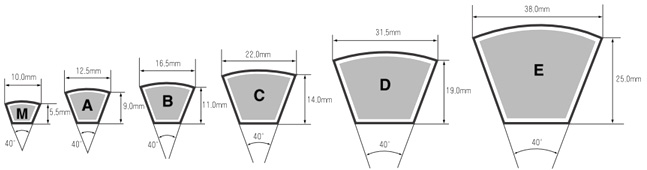

Wrapped Classical V-Belt / Red Label V-Belt

Most widely used power transmission belt.

Economical and easily obtained for replacement.

Characteristics

• High power capacity. Red label V-belts are heat and oil resistant, as well as static conductive
• "SET FREE" provides assured belt length matching and easy inventory control

Applications

• A wide range of machinery from light duty power transmission for OA and household electric appliances to heavy duty power transmission such as printing machines, machine tools and crushers

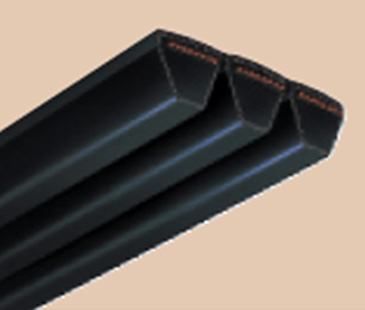

Multiple Banded V-Belt

Multiple strands of standard/red label v-belts are inseparably joined, providing transverse rigidity.

Characteristics

• Suitable for compressors, crushers and other tough machines where belt whip, turn-over is caused by pulsating shock load.
• Useful for material handling applications by using back faces of the belts.

Applications

• Pulsating and shock load drive; Compressor, Crusher, Screening, Grinder, Hammer mill and Chipper.
• Vertical shaft drive; Agitator, Stirrer, Centrifugal separator and Mixer.

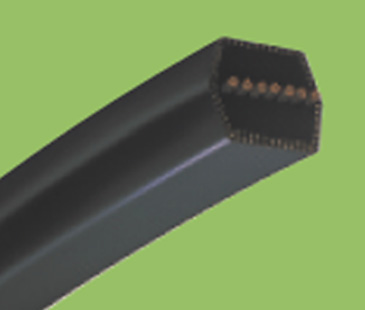

Double V-Belt (Hexagonal Belt)

Both bottom and top faces can be used for power transmission.

Double V-Belts can drive pulleys by both sides of the belt.

They are used on equipment for which a number of shafts have to be driven at the same time.

Characteristics

• Best suited to multi-pulley drives
• Highly flexible

Applications

• It is used for textile and agriculture machines

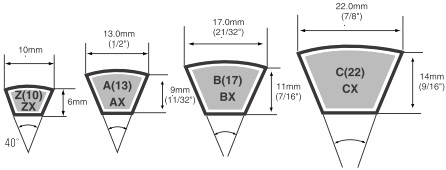

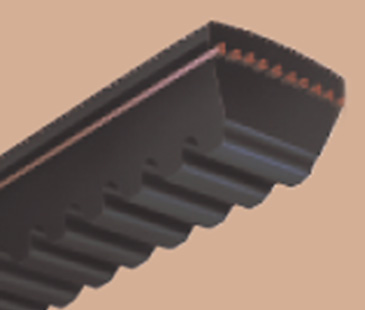

Raw Edge Cogged V-Belt

Raw edge cogged V-Belts are designed for industrial use.

Cost efficient, readily available, easily changeable.

Characteristics

• High capacity power transmission with space saving.
• Cogged profile yields greater belt flexibility and allows smaller pulley diameters.
• High power transmission efficiency saves energy.

Applications

• Suitable for heavy duty, high speed drives.

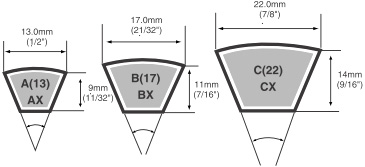

Multiple Banded Raw Edge Cogged V-Belt

Consists of VX type V-belts joined with tie band.

Characteristics

• Offers stable, vibration-free drives under pulsating shock loads
• Cogged construction assures use of smaller pulley diameters than conventional V-belt drives

Applications

• Suitable for vertical shaft drives such as mixers, agitators without belt jumping off the pulley
