MB Belt, Perforated Open-end V-Belt, Star rope, Prene V-rope / PU Round & V-Belt

MB Belt (Polyurethane V-Belt)

A small transparent belt for light-duty power transmission.

Characteristics

  • With its high flexibility, it can be used with a small diameter pulley
  • Excellent abrasion resistance and thus clean operation
  • Small slippage operation
  • Excellent oil resistance

Applications

  • Sewing machines, household electric appliances

Brand(s) Available

Download Catalogue

Types

Single Cog (MB), Double Cog (DMB, DMB-L)

Size Designation

MB 360

 MB - Belt Type
360 - Belt Length (Outer Perimeter in mm)

Dimensions

Belt Type

Belt No.

Top Width a (mm)

Thickness b (mm)

Angle θ ( ° )
Single Cog MB 6.0 4.0 40.0
Double Cog L DMB-L 6.0 3.2 38.0
Double Cog DMB 6.0 4.0 40.0

Brand(s) Available

Download Catalogue

Types

Single Cog (MB), Double Cog (DMB)

Size Designation

MB 360

 MB - Belt Type
360 - Belt Length (Outer Perimeter in mm)

Dimensions

Belt Type

Belt No.

Top Width a (mm)

Thickness b (mm)

Angle θ ( ° )
Single Cog MB 6.0 4.0 40.0
Double Cog DMB 6.0 4.0 40.0

Perforated Open-end V-Belt (POE V-Belt)

Open-ended V-belting with joint holes can be adjusted to required length simply with splicing bracket.

Characteristics

  • Belt length can be adjusted by metal fastener
  • Permits easy belt replacement without requiring machine dissembly

Applications

  • Recommended for temporary use when the existing V-belt has to be replaced urgently
  • Useful for material handling purposes with multi-strand drive
  • Suitable for trial running of machines

Brand(s) Available

Download Catalogue

Types

M, A, B, C

Dimensions

Section

M

A

B

C
a (inch) & mm (0.394) 10.0 (0.492) 12.5 (0.65) 16.5 (0.866) 22.0
b (inch) & mm (0.217) 5.5 (0.354) 9.0 (0.443) 11.0 (0.551) 14.0
Hole Diameter (inch) & mm (0.079) 2.0 (0.098) 2.5 (0.118) 3.0 (0.157) 4.0
Hole Pitch (inch) & mm (0.197) 5.0 (0.315) 8.5 (0.354) 9.0 (0.433) 11.0

Brand(s) Available

Download Catalogue

Types

M / 3L, A / 4L, B / 5L, C

Dimensions

Section

M / 3L

A / 4L

B / 5L

C
Top Width (mm) 10.0 12.7 16.7 22.2
Thickness (mm) 6.8 9.4 11.0 15.2
Angle (Deg) 40.0 40.0 40.0 40.0

Star rope / Super Star rope / Prene V-rope / Prene Hexagonal-rope / Polyurethane Round Belt / V-Belt / Hexagonal Belt

Open-end polyurethane belt.

Characteristics

  • Heat welding provides easy joining. Endless belt length possible
  • Multiaxial drive
  • Excellent abrasion, oil and weather resistance

Applications

  • Suitable for complicated drives, such as multi-pulley drives, multi-directional drives, etc
  • For conveyor units

Brand(s) Available

Download Catalogue

Types

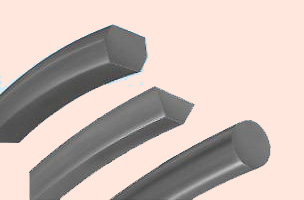

Star rope / Super Star rope: Diameter 2 - 15mm

Prene V-rope: M, A, B

Prene Hexagonal-rope: AA, BB

Dimensions

Star rope / Super Star rope

Belt Code

2Ø

3Ø

4Ø

5Ø

6Ø

7Ø

8Ø

9Ø

10Ø

11Ø

12Ø

13Ø

14Ø

15Ø
Diameter d (mm) 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Prene V-rope

Dimensions / Belt Type

M

A

B
a (mm) 10.0 12.5 16.5
b (mm) 5.5 8.5 10.5
θ ( ° ) 40.0 40.0 40.0

Prene Hexagonal-rope

Dimensions / Belt Type

AA

BB
a (mm) 12.5 16.5
b (mm) 10.0 12.5
θ ( ° ) 40.0 40.0

Brand(s) Available

Download Catalogue

Types

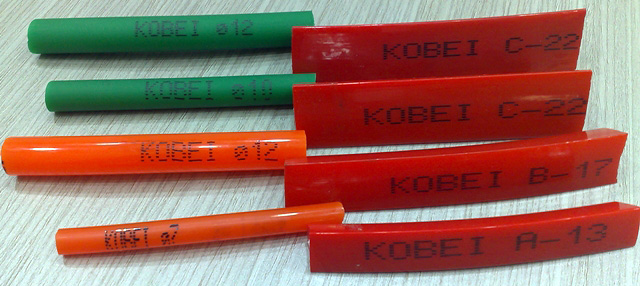

Round Belt: Diameter 2 - 20mm

V-Belt: M, A, B, C

Hexagonal Belt: AA, BB, CC

Dimensions

Round Belt

Belt Code

2Ø

3Ø

4Ø

5Ø

6Ø

7Ø

8Ø

9Ø

10Ø

11Ø

12Ø

13Ø

14Ø

15Ø

16Ø

17Ø

18Ø

19Ø

20Ø
Diameter
d (mm)		 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Hardness 85 A
Colour ORANGE / GREEN
Surface SMOOTH / ROUGH

V-Belt

Section

M

A

B

C

D
Top Width (mm) 10.0 13.0 17.0 22.0 32.0
Thickness (mm) 6.0 8.0 11.0 14.0 19.0
Angle (Deg) 40.0 40.0 40.0 40.0 40.0
Hardness 90 A
Colour RED
Surface SMOOTH

Hexagonal Belt

Section

AA

BB

CC
Top Width (mm) 13.0 17.0 22.0
Thickness (mm) 10.3 13.5 18.0
Angle (Deg) 40.0 40.0 40.0
