Flexstar® Belt
A high tension flat belt with high power transmission capacity that allows space saving drive design and reduces maintenance cost.
Characteristics
- Uniform belt thickness and minimized vibration result in a smooth running and quiet drive
- Being light and thin makes high speed drive up to 60m/sec possible
- Heat and oil resistance. Static conductive
Applications
- Blowers
- Compressors
- Machine tools
- Woodworking Machine
- Textile Machinery
Brand(s) Available
Download CatalogueTypes
FL, FM, FH
Size Designation
20 FM 1400 |
20 - Belt Width (mm) |
| FM - Belt Type | |
| 1400 - Belt Length (mm) |
Dimensions
Inner Fabric
Inner Fabric makes possible to improve cross-wise strength eliminating length wise breakage and use the smaller diameter pulleys.
Tension Members
Pre-stretched polyester tension members minimize the belt stretch and transmit the higher horsepower.
Synthetic Rubber
Synthetic Rubber compounds gives higher co-efficient of friction and worn-out resistance, resulting in higher flex life.
Flat Belt
A high-quality flat belt made from premium fabric and synthetic rubber. Strong belt consisting of best quality cotton fabric Special Port / Port / Harbor / Stick Band
Characteristics
- Resistant to frequent bendings with minimum stretch and shrinkage
- Heat, water and oil resistant
Applications
- For textile and agricultural machines
Brand(s) Available
Types
H: Harbour ® P: Port ®
Made to order for cut edge type (Pioneer®, ECHO®), DRY FLEX® and Canvas surface types
A lot for made to order items is 100m
Link Belt
Ultimate detachable V-belt
Characteristics

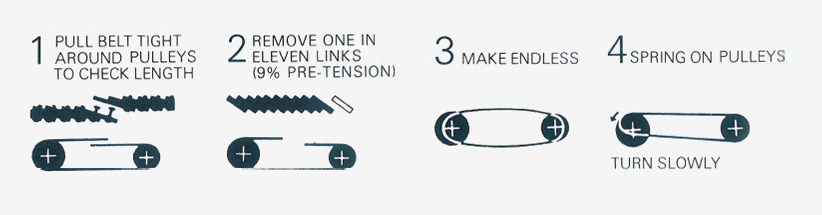

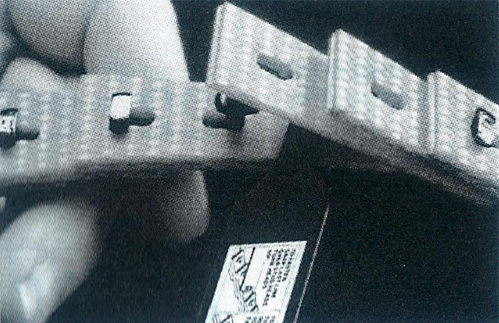

- The unique linkage system enables Nu-T-Link to be uncoupled in seconds by simply rotating the "T" shaped studs though 90 degrees
- Separating the links with the simple tools provided
- Links may be added or removed to obtain correct belt length and coupling is a straightforward reversal of the same procedure
Applications
- Conveyor
- General Purpose
- Elevator Application
Brand(s) Available
