Industrial – Wedge / Narrow V-Belt

Wrapped / Raw Edge Cogged Wedge V-Belt

With its unique narrow width, this V-Belt has high power transmission capability.

Characteristics

  • Permits space saving drive designs and lower energy consumption
  • High speed drives up to 40 m/sec
  • Heat resistant and static conductive
  • Designed as "SET FREE" to allow multi-strand drives
  • Wedge pulleys with bushings offer easy installation

Applications

  • Large sized pumps, crushers, laundry machinery, dynamos, tooling machines, freezers, printing machinery

Brand(s) Available

Download Catalogue
Download Catalogue

Types

Wrapped Type: 3V, 5V, 8V

Raw Edge Cogged Type: 3VX, 5VX

Size Designation

5V 2500

 5V - Belt Section
2500 - Effective Belt Length (inch) x 10

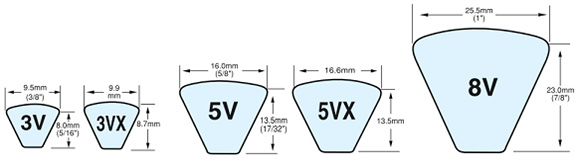

Dimensions

Section

Top Width (mm)

Thickness (mm)

Angle ( ° )
3V 9.7 8.0 40
5V 16.3 13.0 40
8V 25.5 23.0 40
3VX 9.7 8.0 40
5VX 16.3 13.0 40

Banded Wrapped / Raw Edge Cogged Wedge V-Belt

Consists of WEDGE V-Belts joined with tie band.

Characteristics

  • Does not turn over or run off the pulley even under heavily pulsating load conditions
  • Offers stable driving even in long center distance drive application
  • Applicable to vertical shaft drives without belt running off the pulley

Applications

  • Large sized pumps, crushers, laundry machinery, dynamos, tooling machines, freezers, printing machinery

Brand(s) Available

Download Catalogue
Download Catalogue

Types

Banded Wrapped Type: R3V, R5V, R8V

Banded Raw Edge Cogged Type: R3VX, R5VX

Size Designation

5V 3150/R

 5V - Belt Section
3150 - Effective Belt Length (inch) x 10
R - Number of Ribs

Dimensions

Section

Top Width (mm)

Thickness (mm)

Angle ( ° )
R3V 9.7 9.7 40
R5V 15.7 15.7 40
R8V 25.4 25.4 40
R3VX 9.5 11.0 40
R5VX 15.9 16.5 40

Wrapped / Raw Edge Cogged Narrow V-Belt

Offers high power transmission capacity with specially designed narrow top width profile.

Characteristics

  • Permits space saving drive designs and lower energy consumption
  • Smaller belt size deliver same power comparable to conventional belts
  • A narrower sheave results in a more compact belt drive design
  • A reduction of the drive weight due to a smaller belt and sheave contribute to a higher speed drive
  • Oil and heat resistance. Static conductive

Applications

  • Large sized pumps, crushers, laundry machinery, dynamos, tooling machines, freezers, printing machinery

Brand(s) Available

Download Catalogue
Download Catalogue

Types

Wrapped Type: SPZ, SPA, SPB, SPC

Raw Edge Cogged Type: XPZ, XPA, XPB, XPC

Size Designation

SPZ 1000

 SPZ - Belt Section
1000 - Effective Belt Length (mm)

Dimensions

Section

Top Width (mm)

Thickness (mm)

Angle ( ° )
SPZ 9.7 8.0 40
SPA 12.7 10.0 40
SPB 16.3 13.0 40
SPC 22.0 18.0 40
XPZ 9.7 8.0 40
XPA 12.7 10.0 40
XPB 16.3 13.0 40
XPC 22.0 18.0 40

Banded Wrapped / Raw Edge Cogged Narrow V-Belt

Consist of Narrow V-belts joined with tie band.

Characteristics

  • Offers stable operation even under pulsating high shock load condition
  • High power transmission belt that resolves the problems such as belt turning-over and belt running-off the pulley raised by multi-strand belt drives

Applications

  • Large sized pumps, crushers, laundry machinery, dynamos, tooling machines, freezers, printing machinery

Brand(s) Available

Download Catalogue
Download Catalogue

Types

Wrapped Type Banded: RSPZ, RSPA, RSPB, RSPC

Raw Edge Cogged Type Banded: RXPZ, RXPA, RXPB, RXPC

Size Designation

SPZ 1000/R

 SPZ - Belt Section
1000 - Effective Belt Length (mm)
R - Number of Ribs

Dimensions

Section

Top Width (mm)

Thickness (mm)

Angle ( ° )
RSPZ 10.5 10.0 40
RSPA 13.6 12.3 40
RSPB 17.0 16.5 40
RSPC 22.0 21.0 40
RXPZ 9.7 11.0 40
RXPA 12.7 13.0 40
RXPB 16.3 16.5 40
RXPC 22.0 22.0 40
